Adhesive Thermometer Strip vs. Infrared Gun: The Physics of Surface Temperature

When you need to check the temperature of a machine part, an electrical busbar, or a moving component, two common tools come to mind: a handheld infrared (IR) thermometer and a simple adhesive thermometer strip. Most people assume the high-tech IR gun is always superior. But physics tells a different story. In many industrial and maintenance scenarios, a properly applied irreversible temperature indicator sticker delivers more trustworthy data—especially when you need a permanent record of overheating events.

The Fundamental Difference: Contact vs. Radiation

Every object emits infrared radiation based on its temperature. An IR gun measures that radiation and calculates a temperature. By contrast, an adhesive thermometer strip physically touches the surface and changes color through direct heat conduction. This difference leads to several critical advantages for the sticker method.

Why Direct Contact Wins in Real-World Conditions

•Emissivity uncertainty skews IR readings: Every material radiates heat differently. Polished metals (like copper busbars or stainless steel shafts) have low emissivity (0.1–0.3), causing IR guns to read 30–50°C too low unless manually adjusted. An adhesive thermometer strip ignores emissivity—it responds only to actual conducted heat.

•Distance and spot size cause averaging errors: IR thermometers measure an average over a "spot" that grows with distance. On a small bearing housing (20mm wide), a gun held 300mm away may read a mix of hot bearing and cold surrounding air. A self-adhesive irreversible temperature indicator sticker sits exactly where you need it, measuring only that precise location.

•Reflected background radiation fools the sensor: A shiny surface near a hot motor or in direct sunlight reflects IR from other sources. Your IR gun might show 80°C when the part is actually 50°C. The adhesive thermometer strip has no such optical illusion—it only turns black when the sticker itself reaches the rated temperature.

The Recording Advantage: One-Time vs. Instantaneous

A handheld IR gun gives a snapshot reading at the moment you pull the trigger. What happens when the overheating happens between inspections? You'll never know. This is where the irreversible temperature indicator sticker transforms from a simple sensor into a forensic tool.

Permanent Overheat Records Prevent Disasters

•Black means "hot at least once": Once a temperature point on the sticker turns from white to black, it stays black. Maintenance crews can inspect a railway axle box hours after a trip and still see that a wheel bearing exceeded 90°C during the journey. An IR gun would only show the now-cooled temperature.

•Multiple temperature points create a peak history: A typical adhesive thermometer strip from Crystal Code features five stepwise ratings (e.g., 49°C, 71°C, 99°C, 127°C, 154°C). If the 71°C and 99°C squares are black but the 127°C is still white, you know the peak was between 99°C and 127°C—invaluable for failure analysis.

•No operator dependence: An IR reading varies with angle, distance, and user technique. The irreversible temperature indicator sticker works identically every time, regardless of who looks at it.

When IR Guns Actually Work Well (And When They Don't)

Let's be neutral: infrared thermometers excel at scanning large areas quickly, measuring moving objects from a distance, and checking hazardous live parts without contact. But for critical monitoring where a thermal event must be proven later, the adhesive thermometer strip is the correct tool.

Best Applications for Each Technology

IR guns are preferred for:

•Routine scanning of many switchgear panels (fast, no contact).

•Measuring furnace walls or overhead steam pipes (unsafe to touch).

•Checking liquid surfaces in open tanks.

•Adhesive thermometer strips are essential for:

•Monitoring wheel axle boxes on trains (cannot stop to IR-scan every wheel after a run).

•Providing warranty evidence for engine components (did the customer overheat the motor?).

•Validating sterilization temperatures inside autoclave pouches.

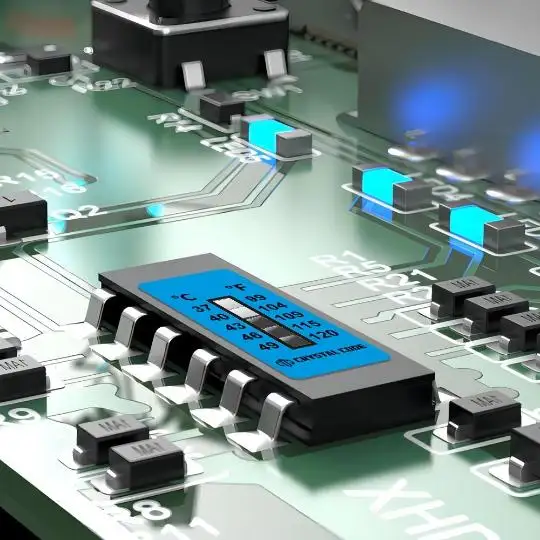

•Confirming solder reflow profiles on PCB assemblies.

Crystal Code's Engineering Advantages in Irreversible Temperature Stickers

Not all temperature labels perform equally. Crystal Code has optimized the design and materials of its adhesive thermometer strip to overcome common failure modes.

Material and Construction Benefits

•High-accuracy color-change chemistry: Crystal Code stickers operate in a temperature range of 37°C to 154°C and possess a ± 2 degree Celsius accuracy. This has been proven through multiple SGS and ISO certifications. When testing the color change, the white-to-black display is both clear-cut and definitive.

•Softness and adhesion: Many labels which have a rigid design will peel off when placed on a curved surface such as the housing of a motor. The flexible design of our PVC/PET along with the aggressive adhesive support adhesion to a surface even if it is slightly oily or vertical.

•Durability in harsh environments: The materials used in the stickers are waterproof, oil proof, and chemical proof. Because of this, the stickers are steam cleaning, oil and lubricant sprays, and industrial dust proof. For extremely aggressive conditions, the label can be sealed under clear epoxy.

•Clear, long-lasting display: The blackened squares remain readable for years, even after exposure to UV light or temperature cycling—critical for warranty claims that may arise months after an incident.

Practical Tips for Maximum Reliability

To get the best results from any irreversible temperature indicator sticker, follow these physics-based rules:

•Apply to a clean, dry surface: Grease or moisture blocks heat conduction, causing the sticker to read lower than the actual metal temperature. Start by using an alcohol wipe.

•Avoid using these in vacuum or microwave situations: In a vacuum there is no air to heat transfer causing the sticker to never activate even when components are hot. Within microwave fields, the sticker's metal-pigmented layer will create erratic behavior because induced currents will affect the sticker.

•Do not store unused stickers in the deep freeze: Keep unused Crystal Code stickers in the fridge, between 2 and 8 degrees celsius. Deep freezing them will result in ice crystals and damage the polymer that holds the pigment.

•Possible use of epoxy encapsulation for oil baths: Epoxy encapsulation should be considered if the monitored component is submerged in oil or in aggressive chemicals. This will prevent the adhesive thermometer strip from chemical leaching.

Conclusion: Choose the Right Tool for the Right Job

Adhesive thermometer strips and infrared guns both have their advantages. Infrared guns are a fast, non-contact, spot-check tool. Adhesive thermometer strips record temperature in a passive, permanent way. For industries, like rail and medical sterilization, the reliability and record keeping of adhesive thermometer strips is crucial, and will far surpass the abilities of any portable electronic thermometer.

Looking for a customizable adhesive thermometer strip? Get a quote today!

FAQs

Q1: How accurate is an irreversible temperature indicator sticker?

A: SGS and ISO certifications verify that the accuracy of Crystal Code strips is ±1.5–2°C.

Q2: Does the sticker work on curved or moving surfaces?

A: Yes - for pipes and motor housings and even rotating parts, Crystal Code strips, because of their soft, flexible design, will adhere firmly.

Q3: Can I still read the strip after it has been exposed to oil or water?

A: Absolutely – it is waterproof and oil‑proof; the blackened squares remain clearly visible.

Q4: Why would a white‑to‑black change be better than a digital readout?

A: It is irreversible – you can inspect hours after an event and still know the peak temperature was reached.

Q5: Do I need to calibrate an adhesive thermometer strip?

A: No – each batch is factory calibrated; periodic verification with a dry‑well calibrator is optional for critical use.
