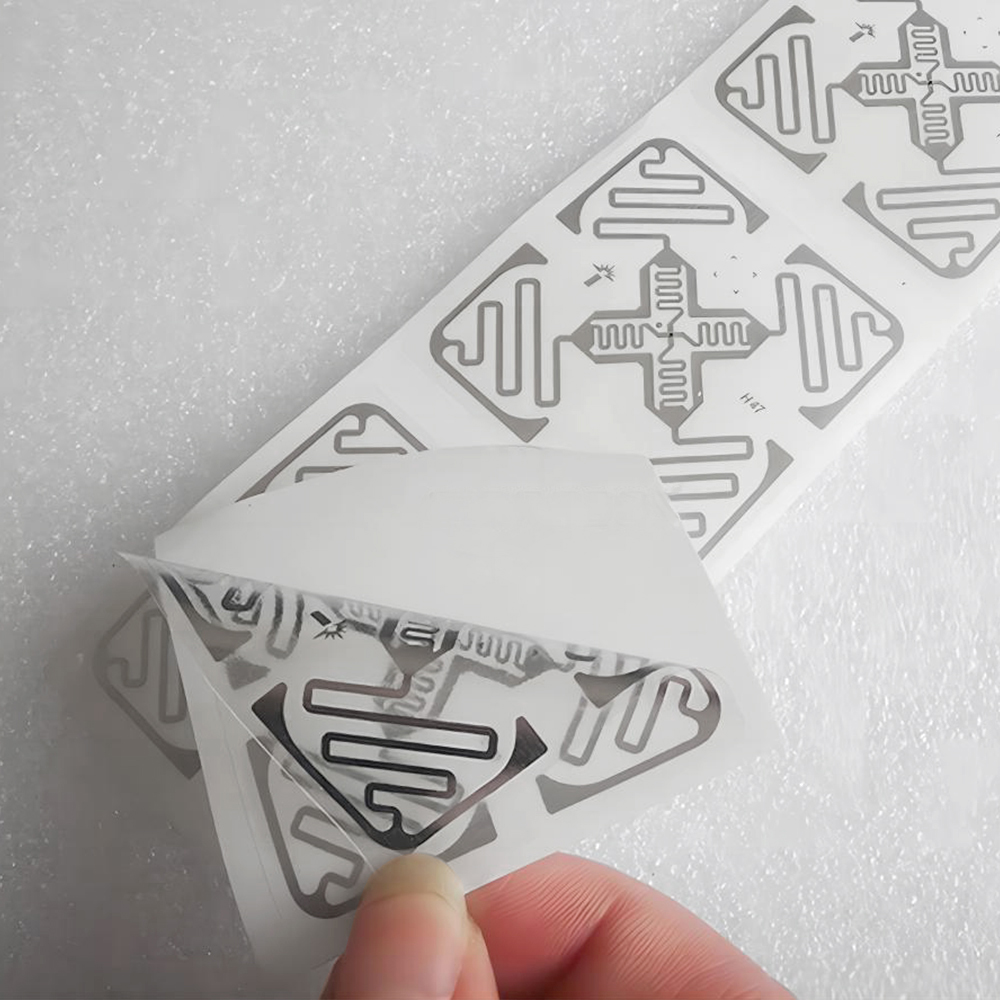

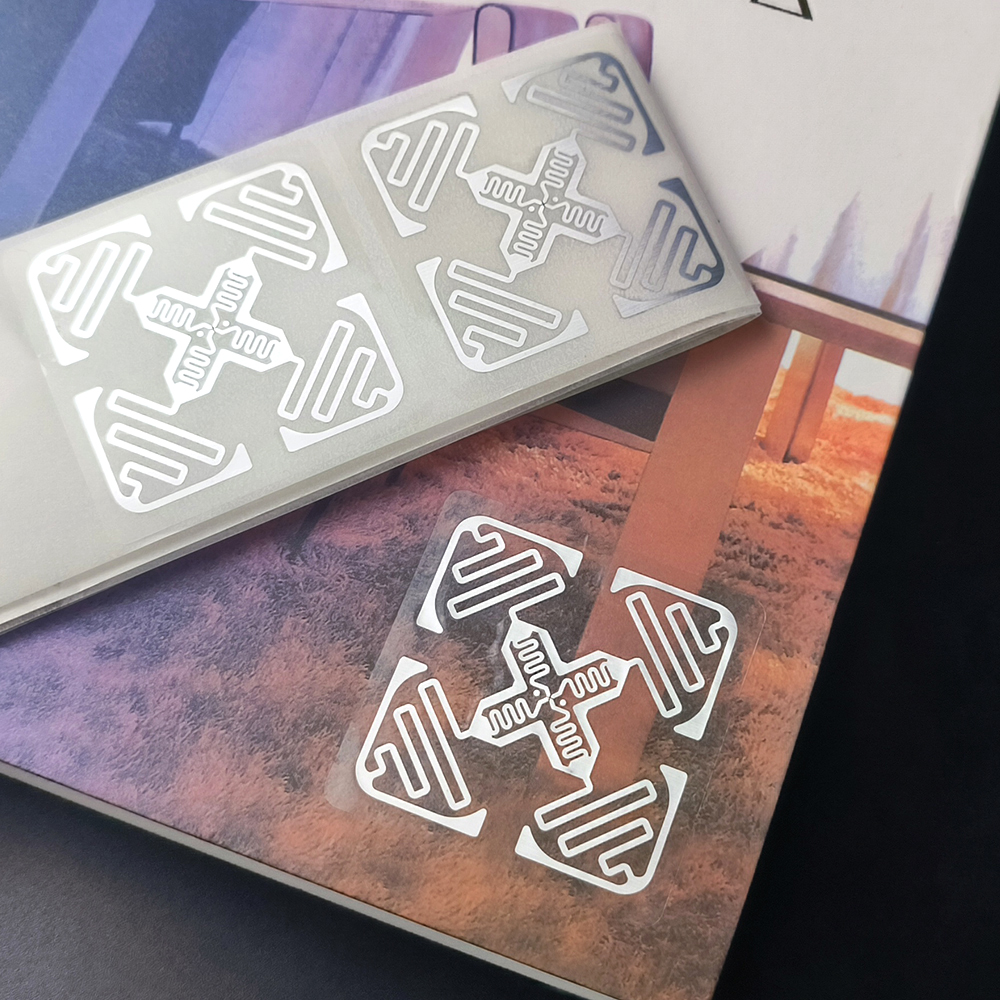

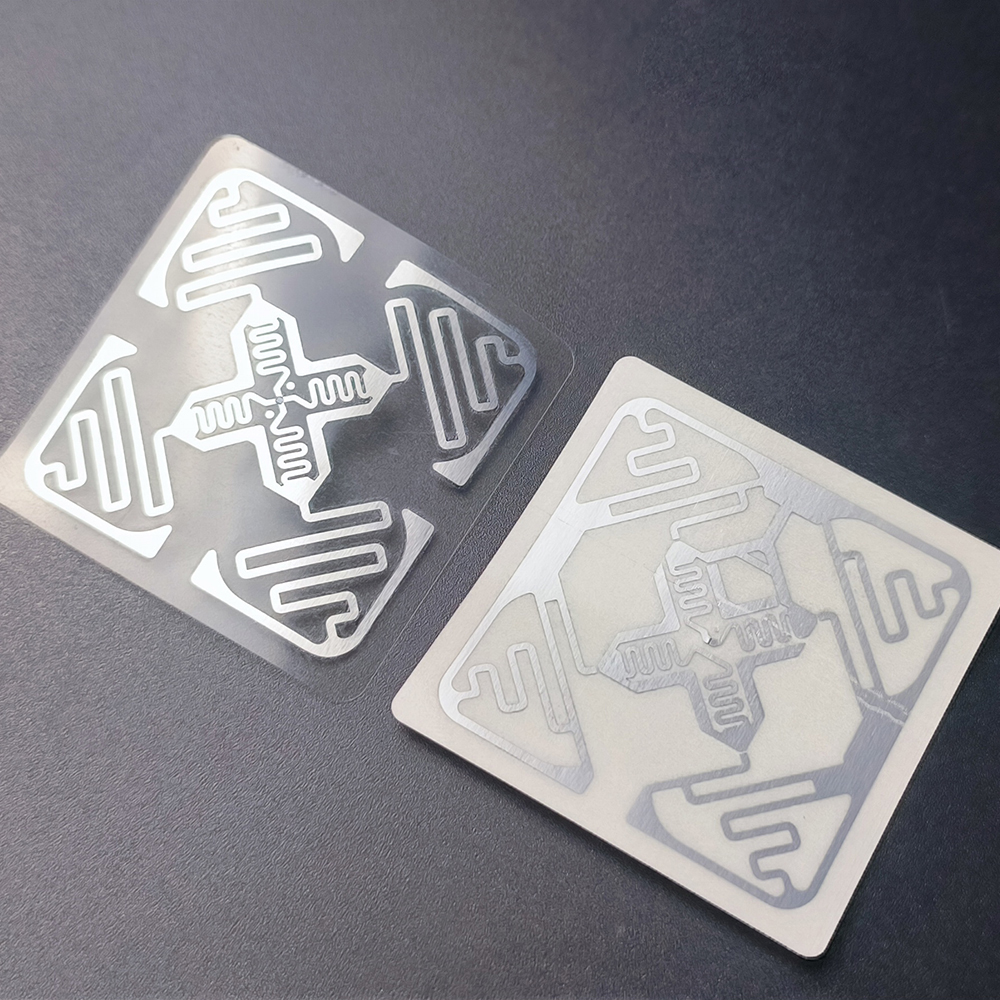

Ultra-high Frequency RFID Sticker Label
Near-Field Precision: Scan over 200 items in 1 second (depending on the power of the reader), which is more than 20 times more efficient than manual scanning. Say goodbye to the cumbersome scanning process!
Ultra-long-distance Flexible Reading: Dynamic recognition from 3 to 15 meters, supporting high-speed movement scenarios of forklifts and conveyor belts, no need for precise alignment!
Adaptability To Harsh Environments: Anti-metal/waterproof (IP68) labels are optional, with a resistance range of -40°C to 85°C, ensuring worry-free deployment for storage, outdoor use, and automotive manufacturing.
Unique ID+ Data Extension: The 96-bit EPC code is globally unique. The user area can store production dates/batch numbers/maintenance records (4KB memory is optional).
One-to-one Scanning
Multiple Recombination
Built-in Chip
-
Packaging Design and Innovation
Offers professional packaging design services, combining the latest market trends and customer needs to guarantee unique and visually appealing box packaging.
-
Efficient Production Capacity
Sophisticated manufacturing equipment and technology, quick market response, and delivery scheduling capabilities.
-
Global Logistics and Distribution
Customized logistics with mode and route switches to accommodate customer demands, thus reducing logistics costs.
Specification
| Frequency Range : 860-960 MHz (Global UHF) | Protocol Standard : EPC Class 1 Gen 2 (ISO/IEC 18000-63) |
| Read Range : Passive: 0.5-12 m Active: 30-100 m | Read Speed : Up to 200 tags/sec |
| IP Rating : Paper: IP54 Industrial: IP67/IP68 | EPC Memory : 96-bit or 128-bit |
| Rewrite Cycles : 100,000+ times | Material Options : Paper/PET/ABS/Epoxy/PC |
| User Memory : 32-bit to 8 KB (Optional) | Attachment : Pressure-sensitive adhesive Rivets/Epoxy |
| Metal Performance : Anti-metal models available (3-10dB gain) | Global Approvals : CE, FCC, IC, RoHS, REACH |
Description
Ultra high frequency RFID label provides extended read ranges and supports large-volume item detection in a single scan. Operating within the UHF spectrum (typically 860–960 MHz), these labels are suitable for applications requiring non-line-of-sight scanning and fast throughput. Integrated antennas and chips allow signal capture across warehouse racks, conveyors, and transit environments.
UHF RFID Label for Industrial-Scale Tracking
-
Read range up to several meters depending on environment
-
Allows simultaneous detection of multiple tags
-
Supports integration with global UHF reader systems
-
Thin profile attaches easily to cartons, pallets, or surfaces
-
EPC memory and user memory options available
Unlike lower-frequency RFID types, ultra high frequency RFID label supports high-speed scanning across wider fields. It improves workflow in sectors where item movement or location changes frequently. The label’s antenna design enables reflection and capture across metal shelving, large stacks, or fast-moving objects.
With each scan, systems can update inventory status, shipment location, or asset usage in real-time. This allows reduced reliance on manual barcode scanning and supports automation goals.
UHF labels can be encoded with unique EPC values for secure item identity. Depending on use cases, they are available in paper-faced, PET-based, or on-metal formats to suit indoor and outdoor applications.
The ultra high frequency RFID label is also compliant with ISO 18000-6C standards, ensuring smooth deployment across regional and international supply networks.
